DTF Printing Machine Sublistar DTF-6002 Pro Max
You are here: Home » Products » DTF Printing Machine » DTF Printing Machine Sublistar DTF-6002 Pro Max

DTF Printing Machine Sublistar DTF-6002 Pro Max

SUBLISTAR also keeps seeking new development on DTF printer, our newly launched DTF printer adopts a brand-new printing scheme, which has changed the traditional printing mode, and prints while feeding the PET film without interruption!
  • DTF-6002 PRO MAX
  • SUBLISTAR

Product Description

Specifications:

Double head XP600 digital white ink heat transfer machine


Printer

Shake powder machine

Type

DTF-6002 Pro Max


Nozzle Type

/2 original Epson I3200-A1

Printing speed

High speed mode 20㎡/hour HD mode 15㎡/hour

Color mode

CMYK+W

Print format

600mm

Media transfer

Damping paper/tension paperr

Heating equipment

Front, middle and back three-stage heating

Ink road system

Automatic ink supply, white ink circulating and stirring

Power supply

110V/220V 50-60Hz

power

1.5kw

≈5kw

Working environment

Temperature 20-28℃ Humidity 50-70ph

Weight

165KG

160KG

Cover an area

1.8*3.5M

Sublistar has upgraded and optimized DTF printers in the following areas::

  • Staggered Inkjet Printing

  • Tension Control System

  • Powder Box Upgrade

  • Suction System Upgrade



1) STAGGERED INKJET PRINTING
From the original linear inkjet printing method to staggered inkjet printing, the printing speed is doubled than original speed.


2) TENSION CONTROL SYSTEM
With automatic deviation correction, the film will not run off, will not arch, and will not wipe the nozzle. White ink and CMYK ink fits perfectly.


3) SUCTION SYSTEM UPGRADE
Upgraded the location of the suction system to dissipate heat and extend the life of the motor.


4) POWDER BOX UPGRADE
Conical powder box, reduce the burden on the motor, and extend the life of the motor.

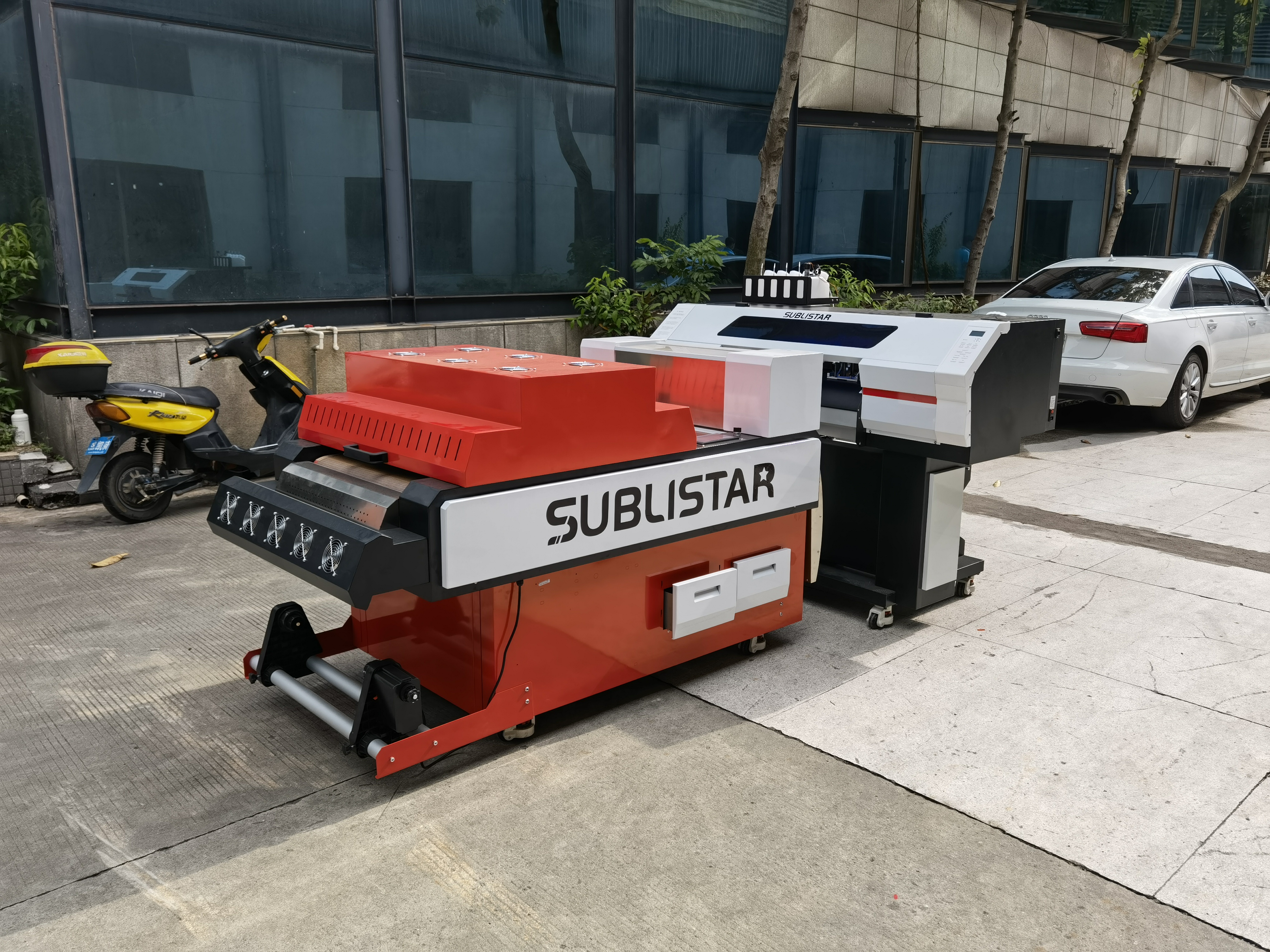

6002 pro max (23)


The original product advantage is still there!

1) POWDER RECYCLE-FREE
The new generation DTF machine configured automatic recycling powder, more cost-effective than manual recycling.


2) ASVANCED WHITE INK CIRCULATION SYSTEM
The white ink circulatory system prevents sediment causing the nozzle to be blocked.


3) BUILT-IN HEATER
Improve the adhesion and curing ability of the ink, avoid ink bleeding under low temperature conditions.


4) VACUUM SUCTION CONVEYOR BELT
Vacuum adsorption conveying platform, absorbing the print material to ensure that the material does not bulge or run off.


5) WITH PLC
The touch screen device is easy to operate. Just touch the desired option to easily navigate through all the menus. The user-friendly nature of the touch screen also helps to save time.


6) INFRARED DRYING
Infrared drying, heating and fixing the color to better protect the printed color.

Here You Can Check Some Applications of DTF

After Sublistar’s continuous improvement test, our DTF Pro Max Printer’s new staggered printing and uninterrupted paper feeding technology, our finished products achieve the higher precision, the better color output, and meanwhile, the inkjet point is more uniform, the line is denser.
