Sublimation Printer Sublistar-1808
You are here: Home » Products » Sublimation Printer » Sublimation Printer Sublistar-1808

Sublimation Printer Sublistar-1808

With the top configuration, SUBLI-1808 Industrial Dye Sublimation's semiconductor heating element can adjust 256 kinds of temperature, so it can adjust the proportion and shade of color to achieve the effect of continuous colorful photos...
  • Sublistar-1808 sublimation printer
  • Sublistar

Product Description

With the top configuration, SUBLI-1808 Dye Sublimation's semiconductor heating element can adjust 256 kinds of temperature, so it can adjust the proportion and shade of color to achieve the effect of continuous colorful photos...

This sublimation printer machine is ideal for Garments, Apparel, Soft Signage, Mouse pads, Carpet, Flag, Tent, Blanket, Curtain, Polyester Fabric rolls or piece.

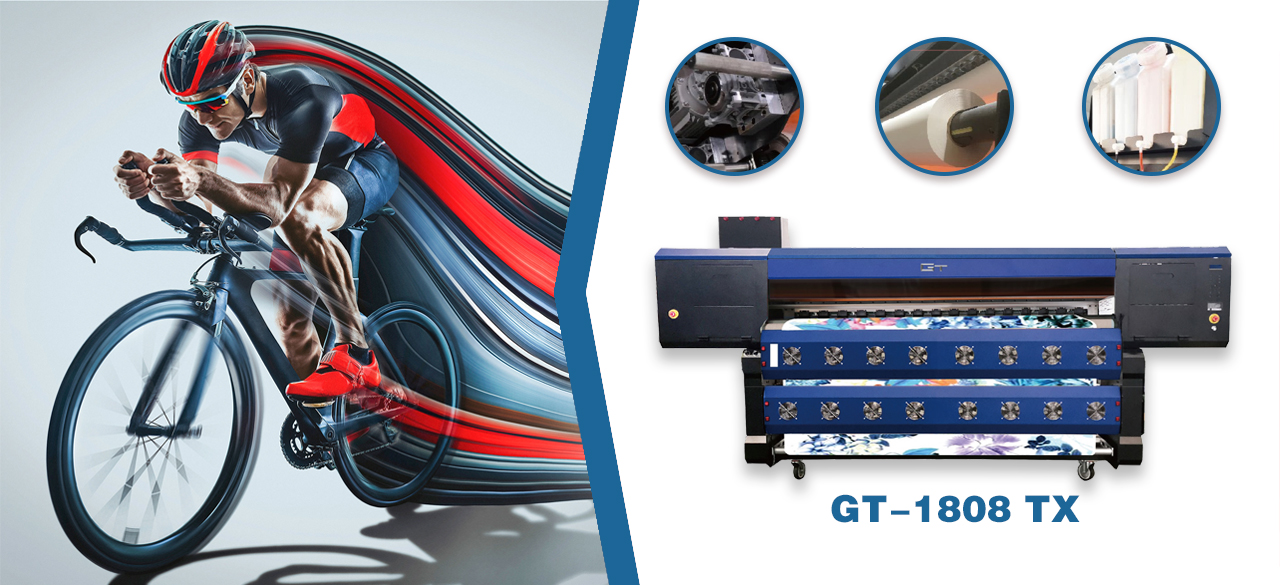

8X

The Specifications

Model SUBLI-1808 SUBLI-2208
Print Head
Eight I3200 Print Heads
Printing Technology
Piezoelectric Inkjet

Width 72in. (1830mm) 87.8 in(223D mm)
Acceptable Media Thickness Maximum 39 mils (1 mm)

Maximum Media Load 3000m
Printing Width
70.8 in. (1800 mm) 86.6 in.(2200 mm)

Type Dye Sublimation Ink
Ink Cartridges Capacity 4*4 CISS (220ml ink cartridge with 5L ink tank)

Color 4 colors (Cyan, Magenta, Yellow, Black)
Printing Resolution
Maximum 3600 dpi
Printing Speed
1 pass(360x1200dpi): 320 sqm/h 2pass(360x2400dpi): 180 sqm/h 3pass(360x3600dpi): 100 sqm/h 1pass(360x1200dpi): 346 sqm/h 2pass(360x2400dpi): 196 sqm/h 3pass(360x3600dpi): 120 sqm/h
Media Heating System
Integrated post heater & Infrared Dryer & Fan system
Interface
USB 3.0
Power Supply
AC 220V ±10%, 50/60 Hz
Dimensions(with stand)
133.86(W)x51.18(D)x78.74(H) in.


(3400(W)x1300(D)x2000(H) mm )

149.60(W)x51.18(D)x78.74(H) in.


(3800(W)x1300(D)x2000(H) mm )

Weight(with stand)
1433 lb. (650 kg) 1653 lb. (750 kg)
Package Dimensions
133.86(W)x55.12(D)x82.68(H) in.


(3600(W)x1400(D)x2100(H) mm )

157.48(W)x55.12(D)x82.68(H) in.


(4000(W)x1400(D)x2100(H) mm )

Package Weight
1653 lb. (750 kg) 18741b. (850 kg)
Environment Power on Temperature: 59 T to 90 7 [15'C to 32-C] / Humidity: 35 to 80% (no condensation)

Power off Temperature: 41 T to 104 F [5 C to 40 C] / Humidity: 20 to 80% (no condensation)
Accessories
USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc.

Machine features:
1.Adopt a new integrated cleaning and moisturizing ink stack module

2.Staggered arrangement of trolley bottom plate, convenient adjustment and higher precision

3.Multiple Epson nozzles, speed up to 376 sqm/h

4.Gigabit network data transmission port to meet the requirements of digital printing high-definition picture output stability and transmission speed

5.Imported accessories: THK ultra-quiet guide rail, Japanese NSK bearing, German igus ink chain, Leisai integrated servo motor

6.Automatic tension retractor, fast storage of printing media, automatic paper measurement, anti-scratch paper curling, protection of the print head

The Applications:

5GCIYM(25_FOC8_MX5BOur Services:
1)Customized Service:
We Can Provide Customized Production and Packing for You!
2)Print Service:
We Also Provide FREE Printing Samples for You!
3)Training Service:
We Provide FREE Training for Our Clients! Even can Send Engineer to Oversea Local Customer!
4)Guarantee Service:
We Provide Lifetime Warranty for All MT Industry Machine Models!
5)Solution Service:
The Most Important We Have Digital Printing Solution Ability!
