24" Film Printing Machine DTF-6002ProMax

DTF t-shirt printers have been one of the most popular ways of printing garments in the last few years, and their personalized features are highly sought after by people of all ages. The transferred garments are resistant to washing, do not fade, and have vibrant colors. Currently, Sublistar's two most popular series: the DTF Star series and the DTF Ultra series newly upgraded, can provide customers with superior quality for stable and continuous printing.
  • DTF-6002 PRO MAX

  • Sublistar

sharethis sharing button

Product Description

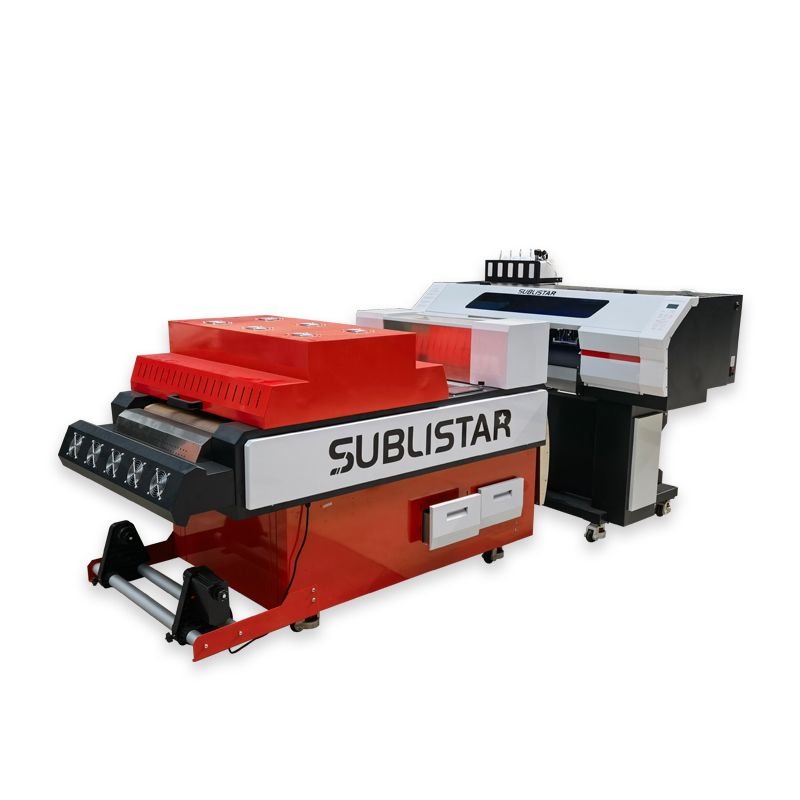

DTF-6002ProMax 24" Film Printing Machine

Direct to Film Comprehensive Solution
Model: DTF-6002ProMax



Print Head: Dual Epson PrecisionCore™ I3200/4720 print heads.
Max Print Size: 420mm Print Width.
Print Speed: 15-20m2/h


DTF Pro max is a new generation of the digital revolution, creating a new digital dtf film printing process. It makes up for the shortcomings of the existing dtf technology. The max print width 24inch. Max print speed upto 20m2/h.

6002 pro max (1)

New Feature of DTF-6002 ProMax

Latest technology of DTF PRO, Want some quality clothing shirt? Try our DTF Print, same as silkscreen.

Staggered Inkjet Printing Technology

The new generation of dual-nozzle staggered printing technology greatly improves the printing speed, 4pass accuracy surpasses 6pass.

Constant Tension Control System

Tension control system automatically controls tension during DTF flm printing processes.

Suction System Upgrade

Vacuum adsorption conveying platform, absorbing the print material to ensure that the material does not bulge or run off.

Powder Box Upgrade

Conical powder box, reduce the burden on the motor and extend the life of the motor.

Machine Parameter

 Brand  Sublistar
 Model Type  DTF-6002ProMax
 Print Head  I3200-A1
 Print Resolution  2400DPI
 Max Print Speed  20m2/h
 Color Control  ICC Color Poil With Adust Unction
 Print Width  600mm
 Ink  Textile Pigment Ink
 Operation  Enviroment  Temperature 15°C~30°C, Humidity 50%~75%
 Power  50Hz/60Hz 110V/220V 10~20A
 System  Windows7 Or Above
 Printer  (Machine Size):1600 X 960X 1300mm(L XWxH)

 (Packing Size ) : 2103 X 1130X 120mm(LxWxH)

 (Net Weight) : 150KG; (Gross Weight) : 200KG
 Glue Coating   System  (Machine Size ) : 1600X 1360 X 1200mm(L XWXH)

 (Packing Size ; 2030X 1000> 1400mm(L XWxH)

 (Net Weight) : 250KG ; (Gross Weight) : 250KG
 Applicable  Substrate  Swimsuit, Diving Suit, High-Elasticity Suit, Cotton, Nylon, Chemical Fiber, Leather, PVC & EVA, Etc.


Working Process

Design Pattern

Use photoshop, illustrator or other software to design your pattern.

Print Your Design

Adjust the printer parameters in the RIP software and use our printer and ink to print your pattern.


Turn on the switch of the powder shaking machine, the machine will automatically powdering, and dry and fix the color.

Heat Press

Use a heat press machine, set the temperature to 180 degrees, and time 15 seconds to transfer.
