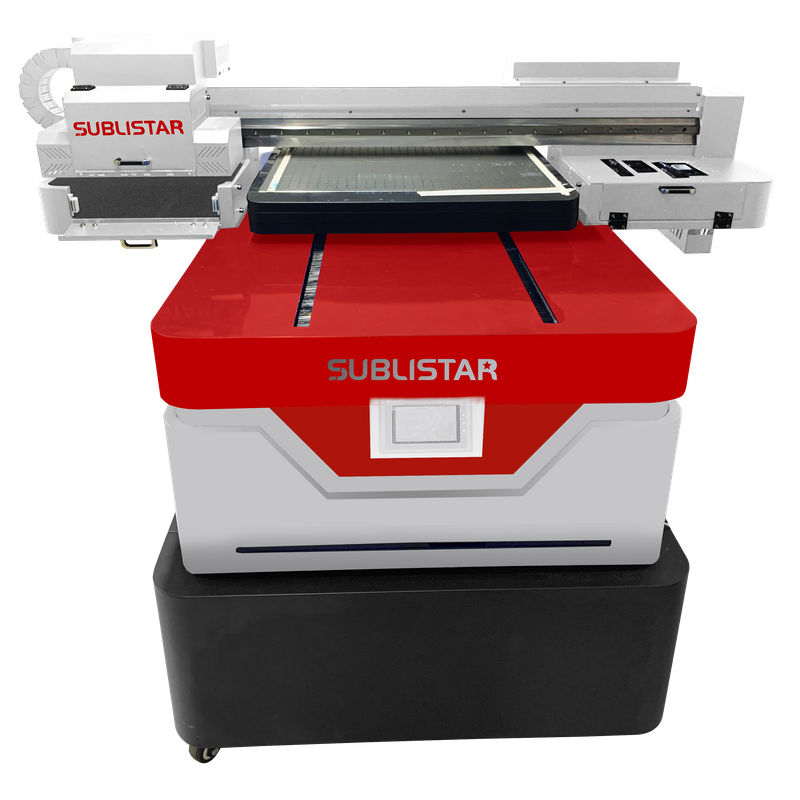

Flatbed DTF UV Printer for Hard Materials 6090

DTF-6090UV is a new technology of the digital revolution, The biggest advantage of this new technology is that after printing, it can be directly attached to the substrate to be transferred without other processing.  Sublistar currently has a wide range of UV DTF printers, roll-to-roll, flatbed printers, and sheet-to-roll machines. It supports a variety of printing methods, which makes it more flexible to receive orders.

  • DTF-6090UV

  • SUBLISTAR

Availability:
sharethis sharing button

Product Description

DTF-6090UV (2)-1

Parameter

Print Head: Four Epson PrecisionCore™ print heads.
Max Print Width: 60*90cm



Feature


DTF-6090UV is a new technology of the digital revolution, The biggest advantage of this new technology is that after printing, it can be directly attached to the substrate to be transferred without other processing.


Feature of Sublistar DTF 6090 UV Flatbed Printer

  • Reliable boards system work on stable.high precision machine body it can work on any line.

  • Automatic stirring system for white ink and lacking ink alarming system. Making sure non-stop working. Together with alarm function for ink shortage.

  • White ink channel on or off optional and output percentage adjustable, make printing more vividly and saturation.

  • Carriage height could reach to 24cm; And it can work on 3 heads by varnish+white+ color, Print speed faster, and control easier.

  • Highly integration control software with non-stop working function, easy to read and add print file during printing.

  • Support for multiple printing on same picture by one time, fit for most special produciton request




Technical Parameter


Product DTF 6090 UV Flatbed Printer
Brand Sublistar
Model DTF-6090UV(F1080) DTF-6090UV(I3200) DTF-6090UV(4720)
Printhead 1080 head 3200 head 4720 head
Print width Max 60*90cm Max 60*90cm Max 60*90cm
Heads number 3 or 4 3 or 4 3 or 4
Speed W+C+V+G W+C+V+G W+C+V+G
Production mode 2m2/ h 3 m2/ h 3 m2/ h
Precision mode 1.5m2/ h 2.5m2/ h 2.5m2/ h
High precision 1m2/ h 2m2/ h 2m2/ h
Maximum Resolution 720 x 4320 dpi 720 x 4320 dpi 720 x 4320 dpi
Print height 3mm to 240mm adjustable
Ink 4/6 color+white+varnish(K C M Y  Lc Lm + white+varnish)
Printing types Glass,Acrylic board,Wood,board ,Metal,Leather and so on
Data Interface USB 3.0 high speed interface transfer system
Working Environment Temperature:25℃-30℃ Humidity:40%-60%
Power 50-60 Hz 1000W-1600W AC220V(±10%) /  AC110V(±10%)
Operating Systems Windows 7 Professional,Windows 8, Windows 10
Printer Dimension With table:1530mmX1600mmX1380mm Without table: 1440mmX1600mmX870mm


水晶贴耗材

UV DTF VS. DTF

 Sublistar recently launched a new technology – UV DTF printing. The biggest advantage of this new technology is that after printing, it can be directly attached to the substrate to be transferred without other processing.

  • Compared with DTF printing, UV DTF requires a UV flatbed printer and a laminating machine. DTF requires a DTF printer, a shake powder machine and a heat press.

  • New technology UV DTF printers is mainly used for the transfer of hard materials, DTF is mainly used for the transfer of fabrics, Jeans, bag.

  • Sublistar UV DTF printers are currently available in A3 size with 4 print heads. Mainly divided into economical, basic or high-end machines. Corresponding to use is TX800/4720/I3200 print head. You can choose according to your needs.

Working Process

1.Design Pattern

Use photoshop, illustrator or other software to design your pattern.

2.Print PET Film

Print the pattern on the direct transfer film first, and print in the order of white ink, color ink, and varnish.

3.Transfer Film

After printing, put the PET film on the direct transfer film. It is recommended to use a laminating machine to press it. Of course, it can also be operated manually.

4.Paste on Material

Cut out the desired pattern and paste it on the material to be pasted. Press the pattern repeatedly, slowly tear open the film, finished.


What materials can be transferred on?

Hard material substrates such as glass, wood, metal, plastic, etc.
