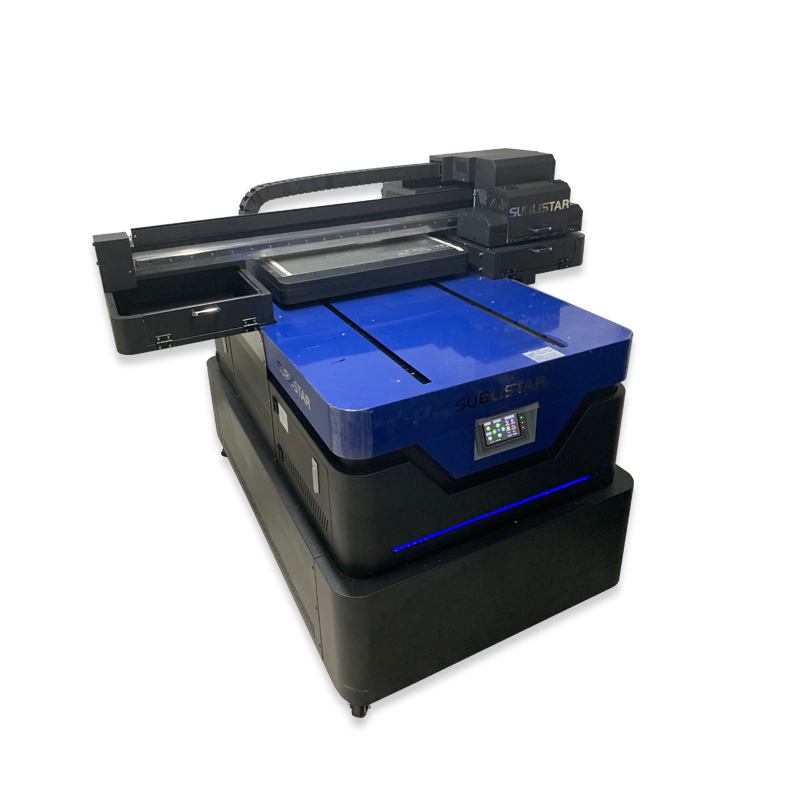

DTF-6090UV is a new technology of the digital revolution, The biggest advantage of this new technology is that after printing, it can be directly attached to the substrate to be transferred without other processing. Sublistar currently has a variety of UV DTF printers under its belt that support flatbed printing, roll-to-roll printing, and also plate-and-roll all-in-one printing.
Print Head: Four Epson PrecisionCore™ print heads.
Max Print Width: 60*90cm
DTF-6090UV is a new technology of the digital revolution, The biggest advantage of this new technology is that after printing, it can be directly attached to the substrate to be transferred without other processing.
Reliable boards system work on stable.high precision machine body it can work on any line.
Automatic stirring system for white ink and lacking ink alarming system. Making sure non-stop working. Together with alarm function for ink shortage.
White ink channel on or off optional and output percentage adjustable, make printing more vividly and saturation.
Carriage height could reach to 24cm; And it can work on 3 heads by varnish+white+ color, Print speed faster, and control easier.
Highly integration control software with non-stop working function, easy to read and add print file during printing.
Support for multiple printing on same picture by one time, fit for most special produciton request
|Product||DTF 6090 UV Flatbed Printer|
|Printhead||1080 head||3200 head||4720 head|
|Print width||Max 60*90cm||Max 60*90cm||Max 60*90cm|
|Heads number||3 or 4||3 or 4||3 or 4|
|Production mode||2m2/ h||3 m2/ h||3 m2/ h|
|Precision mode||1.5m2/ h||2.5m2/ h||2.5m2/ h|
|High precision||1m2/ h||2m2/ h||2m2/ h|
|Maximum Resolution||720 x 4320 dpi||720 x 4320 dpi||720 x 4320 dpi|
|Print height||3mm to 240mm adjustable|
|Ink||4/6 color+white+varnish(K C M Y Lc Lm + white+varnish)|
|Printing types||Glass,Acrylic board，Wood，board ，Metal，Leather and so on|
|Data Interface||USB 3.0 high speed interface transfer system|
|Working Environment||Temperature：25℃-30℃ Humidity：40%-60%|
|Power||50-60 Hz 1000W-1600W AC220V（±10%） / AC110V（±10%）|
|Operating Systems||Windows 7 Professional，Windows 8, Windows 10|
|Printer Dimension||With table:1530mmX1600mmX1380mm Without table: 1440mmX1600mmX870mm|

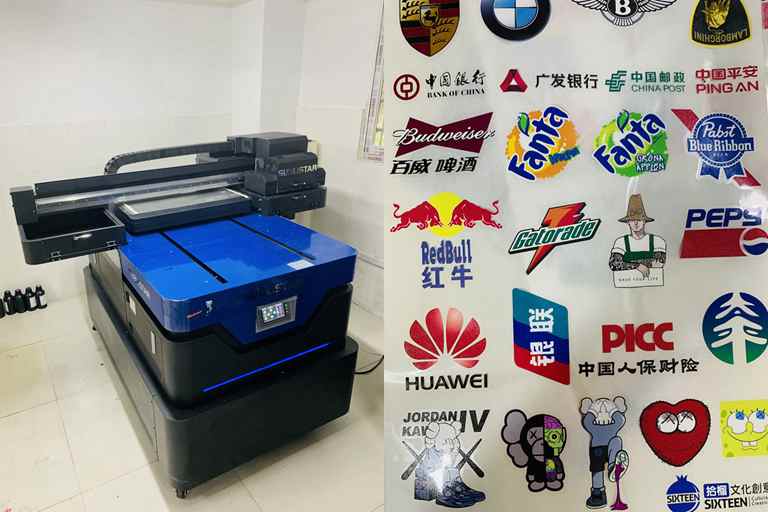

Sublistar recently launched a new technology – UV DTF printing. The biggest advantage of this new technology is that after printing, it can be directly attached to the substrate to be transferred without other processing.
Compared with DTF printing, UV DTF requires a UV flatbed printer and a laminating machine. DTF requires a DTF printer, a shake powder machine and a heat press.
New technology UV DTF printers is mainly used for the transfer of hard materials, DTF is mainly used for the transfer of fabrics, Jeans, bag.
Sublistar UV DTF printers are currently available in A3 size with 4 print heads. Mainly divided into economical, basic or high-end machines. Corresponding to use is TX800/4720/I3200 print head. You can choose according to your needs.
Use photoshop, illustrator or other software to design your pattern.
Print the pattern on the direct transfer film first, and print in the order of white ink, color ink, and varnish.
After printing, put the PET film on the direct transfer film. It is recommended to use a laminating machine to press it. Of course, it can also be operated manually.
Cut out the desired pattern and paste it on the material to be pasted. Press the pattern repeatedly, slowly tear open the film, finished.
Hard material substrates such as glass, wood, metal, plastic, etc.
