500mm*1.7m/1.9m Roller Heat Transfer Machine
You are here: Home » Products » Rotary Heat Press » 500mm*1.7m/1.9m Roller Heat Transfer Machine

500mm*1.7m/1.9m Roller Heat Transfer Machine

SUBLI-500Series Mid Range Rotary Heat Press offers the latest design advancements in continuous rotary belt heat transfer printing equipment for exceptional temperature control and print quality. Large diameter drum provides for extremely high-speed transferring. Oil-filled drum makes colors consistent from side to side and job to job.
  • Subli5017/5019

  • sublistar

Availability:
sharethis sharing button

Product Description

Technical Specifications



Description Oil Filled Rotary Heat Press SUBLI-500 has been specificalty designed to meet the increasing demand for cut part digital printing.This method is widety used to print sport and team apparel.
Double layer drum solution is ideally designed for piece-by-piece or roll-to-roll transfers up to 190cm in width including polyester fabric, soft signage, custom clothing and larger scale personalised dye sublimation items.
Features △ Roll-to-roll or Piece-by-piece processing
△Double layer drum – 500mm / 19.7″ in diameter
△ Filing Oil Drum to 100% (Saving 30% Power)
△ 24 heating elements
△ 75% Nome Drum Blanket Coverage
△ Maximum transfer speed:3m/min(9.8ft)
△ Fabric / Transfer Paper / Tissue Paper Tension Controlled
△ Auto Power On / Off
Specifications SUBLI-5017 SUBLI-5019
Drum Diameter 50cm or 20”,  Double Layer
Working Width 1700mm(70″) 1900mm(75″)
Voltage 3 phase, 220V / 380V / 480V
Power 40.8KW 48KW
Transfer Speed 1.6m/min(5.2ft)-3m/min(9.8ft)
Number of Heating Elements 24
Feeding Rollers 3
Collecting Rollers 3
Process Path Feeding in Through top of Drum
Roll-to-roll Yes
Piece-by-peice Yes
Work Table Yes, but no glass
Packing Dimensions 3500*1400*1650mm 3500*1400*1650
 Installation size 4600*2900*840mm 4600*2950*840

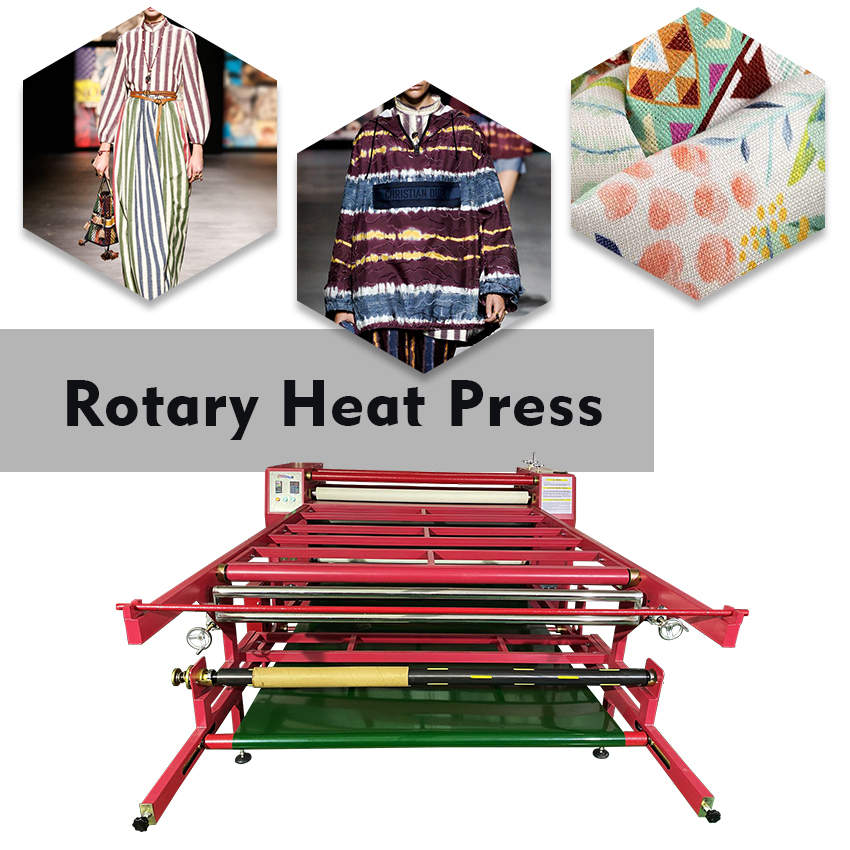

3


Advantage of Sublistar Rotary Heat Press


Heated oil drum 500mm / 19.7" in diameter

Oil heated, multifunctional mini-rotary heat transfer press. Oil filled drum makes colors consistent side to side and job to job.

Continuous Printing

There is no need for manual feeding in of workpieces and paper during operation. There is no need for manual feeding in of workpieces and paper during operation.




Anti-hand Pressure Safety Function

When the machine is operating, you need to adjust the fabric and sublimation paper, which can help you prevent your fingers from being pressed.



Tension Adjustment

Assure the paper and textile into the printing smoothly, reduce the wrinkle.

Machine Details

1. It is equipped with external oil box which makes it convenient to add heat conduction oil, it has high security performance with the unique advantage of anti-explosion through automatic turn off.

2.The releasing-laying system is manufactured with the body machine as a while part, thus to deliver the paper or cloth exactly parallel without deviation. It only converts a small area but it is labor-saving with high overall efficiency.

3. Blanket ad belt are separated. Adopt simultaneous shaft adjustment and pressure balancing shaft to make sure the pressure on the blanket is consistent with that on the heating roller, Thus completely solve the problem of cooling the blanket while turning off the machine or while power off, and give more protection to the blanket and extend its using life.

4. Use frequency conversion governor which can adjust the printing speed freely. And the transfer printing speed is more stable.

5. Automatic collecting and releasing cloth system is optionally equipped.

6. The electric components of the product are imported, and it separated structure of the electric box with the body machine makes the using life of the electrical equipment longer, the digital control brings higher accuracy.

7. The hardware is with high-tech configuration. The main wall panel and rollers are all reinforced and manufacture professionally.

26


Applications

Apparel

- Lycra materials-cycling
- Polyamide-Swim&Surfwear
- 100% polyester(stretch)-cycling, running, ice hockey wear
- Sports and functional textiles

Home Internal

Curtain, Blind, Cushion, Table Cover, Towel Cleaner, etc.

Advertisement

Flags, Banners, Felts, Gaming tables, Home Textiles

Hard Substrates

Ceramics, Metal plates, Skis, Snowboards, Mug, Cup
