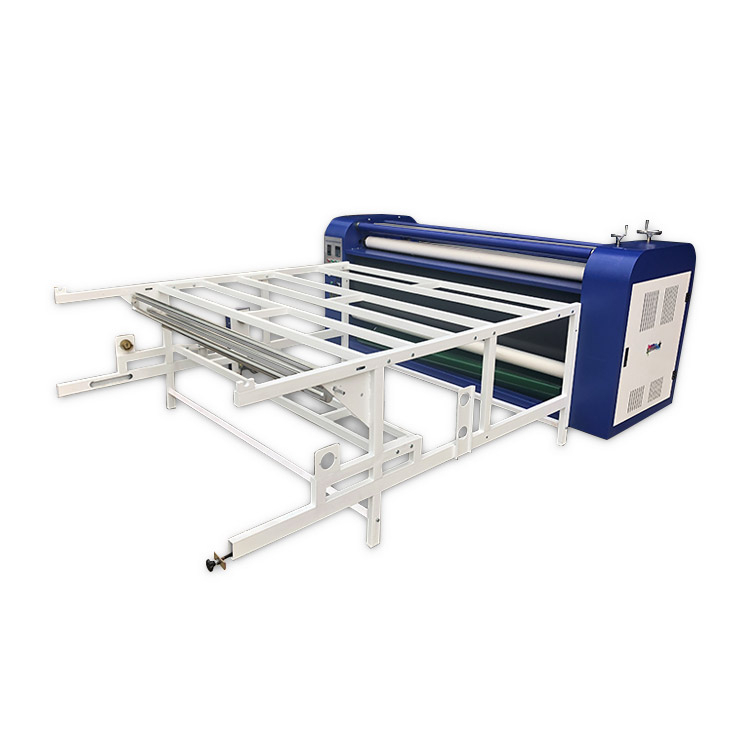

Luxury Oil Filled Roll to Roll Heat Transfer Machine
You are here: Home » Products » Rotary Heat Press » Luxury Oil Filled Roll to Roll Heat Transfer Machine

Luxury Oil Filled Roll to Roll Heat Transfer Machine

SUBLI Luxury Rotary Heat Press offers the latest design advancements in continuous rotary belt heat transfer printing equipment for exceptional temperature control and print quality. LARGE 40″ (1.00m) and 47″ (1.20m) diameter drum provide for extremely high speed transferring. Oil-filled drum makes colors consistent side to side and job to job.
  • Subli Luxury

  • sublistar

Availability:
sharethis sharing button

Product Description

Technical Specifications



Description SUBLI Luxury Rotary Heat Press offers the latest design advancements in continuous rotary belt heat transfer printing equipment for exceptional temperature control and print quality. LARGE 40″ (1.00m) and 47″ (1.20m) diameter drum provide for extremely high speed transferring. Oil-filled drum makes colors consistent side to side and job to job.
Features △Chromium coated Oil drum
△Aligning Material and Felt Automatically
△Detecting Temperature on the Surface
△Blanket coverage at least 80%
△ontrolling Temperature Precisely (Controllable Silicon Solid State Relay)
△Fabric Cooling System
△Fabric Water Cooling System (optional)
△Fabric Discharge Swinging System (optional)
Specifications SUBLI-10025 SUBLI-10035 SUBLI-12034
Drum Diameter 100cm or 40”,  Double Layer 47″,  Double Layer
Working Width 2500mm(98″) 3500mm(138″) 3400mm(134″)
Voltage 3 phase, 380V
Power 120KW 168KW 204KW
Transfer Speed 5m/min(16ft)-20m/min(66ft) 7m/min(23ft)-89m/min()
Number of Heating Elements 48 54
Feeding Rollers 4
Collecting Rollers 4
Process Path Feeding in Through Bottom of Drum
Roll-to-roll Yes
Piece-by-peice No
Auto Felt Alignment Yes
Auto Fabric Alignment Yes
Packing Dimensions 4000*2200*1850mm 5700*2200*1850mm 4650*2200*2050mm
 Installation size 5000*3700*1900mm 5000*4700*1900mm 5000*4650*2050mm
NOTE: Working width available from 1200mm to 2600mm.

4-3-ZX 1 (2)

Advantage of Sublistar Rotary Heat Press

Full Oil Heated Drum

Roll oil temperature heating, heating more evenly, the transfer effect without color difference, safe and energy-saving.

Domestic Brands of Motor and Reducer

Domestic brands of motor and reducer, after years of use, have reached a stable state, the warranty period of 12 months


Anti-hand Pressure Safety Function

The synchronous rod is used to adjust the blanket loose/tight so that the two sides are even and the blanket is detached. When the power is shut down or the power is cut off, the blanket and the roller are separated, and the blanket is better protected.

Automatic nomex drum blanket alignment

This heat transfer machine is small and affordable. And blanket is made of American DuPont materials, 10 mm thickness, good transfer effect, long service life.


38


Machine Details


1. DuPont Blanket: Blanket is made of American DuPont materials, 10 mm thickness, good transfer effect, long service life.

2. Single drum: Inside / outside cylinder finishing, cylindrical precision grinding machine, drum heating evenly, no color difference.

3. Integrated slip ring: free maintenance

4. Heating tube: stainless steel heating tube, heat the conductive oil directly, the temperature can rise to 200 ºC within 45 minutes.

5. Universal bearing: we use the lasted universal bearing, which can effectively reduce the wear of bearing and reduce the loss of parts.

6. Small machine, proofing and producing lower cost.


Apparel

- Lycra materials-cycling
- Polyamide-Swim&Surfwear
- 100% polyester(stretch)-cycling, running, ice hockey wear
- Sports and functional textiles

Home Internal

Curtain, Blind, Cushion, Table Cover, Towel Cleaner, etc.

Advertisement

Flags, Banners, Felts, Gaming tables, Home Textiles

Hard Substrates

Ceramics, Metal plates, Skis, Snowboards, Mug, Cup
