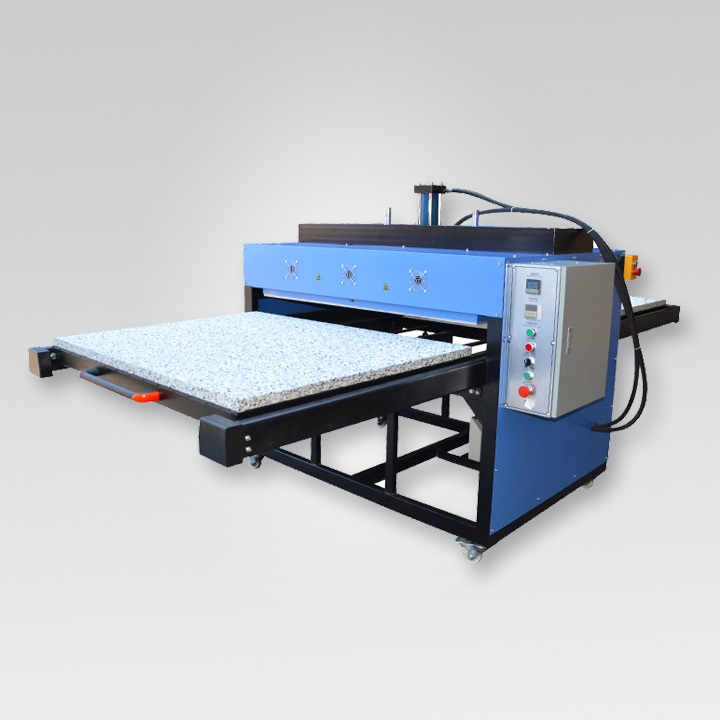

Flatbed Industrial Wide Format Flatbed Heat Press

To fulfill the growing need for cut-component digital printing, the Industrial Wide Format Flatbed Heat Press Machine was created. Sport and team gear are frequently printed using this technique.

  • Subli Flatbed

  • Sublistar

Availability:
sharethis sharing button

Product Description

Technical Specifications


Model(CM)  Voltage(V)  Power(KW)  Time  Range(S)  Temp.Range(℃)  Working  Pressure(KG/CM²)  Packing  Size(CM)
 60*80  220/380  6  0-999  0-399  0-8  134*73*155
 80*100  220/380  9  0-999  0-399  0-8  150*93*155
 100*120  220/380  12  0-999  0-399  0-8  170*113*149
 120*150  220/380  15  0-999  0-399  0-8  200*132*155
 100*160  220/380  15  0-999  0-399  0-8  217*113*153


Advantage of Sublistar Rotary Heat Press

Multi-functional Design

With multi-functional design, it can be used for transfer printing cut pieces, especially suitable for small batch and sample making, vivid transfer effect same as bigger size drum.

Teflon Coated Drum

The heating is uniform and not easy to deform. The surface of the heating plate is coated with Teflon. Teflon coated drum has the advantages of high hardness, high abrasion resistance and anti-bonding etc.


Double Station Countertop

When the machine is operating, you need to adjust the fabric and sublimation paper, which can help you prevent your fingers from being pressed. It is available upon request (for double-side printing at the same time).

High-density and High-temperature Resistant Silicone Pad

Good elasticity, no aging, no deformation, no peculiar smell when working at high temperature. Temperature control, time control, adjustable pressure (maximum pressure can reach 8KG/cm).


phnuematic

Machine Details


1. Master Switch-Cut off the electricity automatically when the electric is short circuit.
2. Voltmeter Voltage displayed at real time.
3. Display Controller-Digital display controller for easy operating.
4. Emergency Push Button-Ensure the safety of the operator and better transferring effect.
5. Universal Pulleys-It’s very convenient and easy to move and brake the machine if neccessary.
6. Rail-like Track-Pull and push the working table easily and freely.
7. Barometer-The air pressure is adjustable according to different sublimation blanks.
8. Inside Structure-Neat wiring inside.


Applications

Apparel

- Lycra materials-cycling
- Polyamide-Swim&Surfwear
- 100% polyester(stretch)-cycling, running, ice hockey wear
- Sports and functional textiles

Home Internal

Curtain, Blind, Cushion, Table Cover, Towel Cleaner, etc.

Advertisement

Flags, Banners, Felts, Gaming tables, Home Textiles

Hard Substrates

Ceramics, Metal plates, Skis, Snowboards, Mug, Cup
