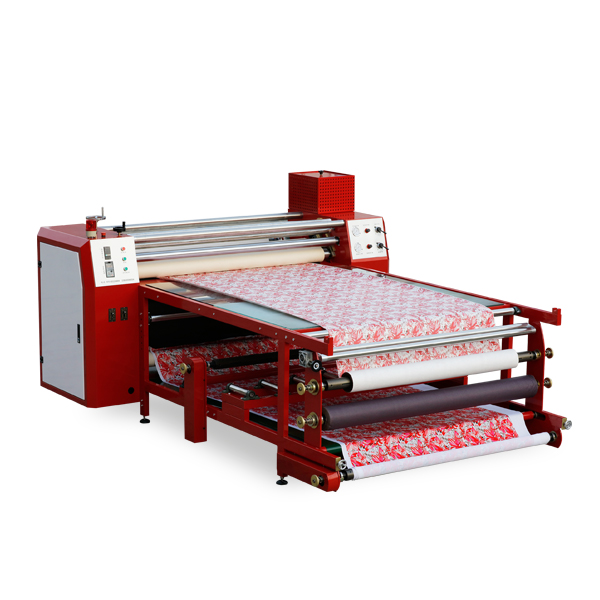

Professional Rotary Heat Press Subli 600

Sublistar roller heat transfer printing machine is suitable for sublimation transfer printing of large banners, flags, non-woven fabrics, garment fabrics, towels, sheets, mouse pads and other products, especially for continuous transfer printing of piles of fabrics. It is able to print continuously with high speed to meet the demand of customers for large quantity printing.
sharethis sharing button

Product Description

Drum Diameter60cm or 24”,  Double Layer
Transfer Width1600mm(63″)1800mm(71″)2500mm(98″)3100mm(122″)
Voltage3 phase, 220V / 380V / 480V
Transfer Speed1.6m/min(5.2ft)-4.2m/min(14ft)
Number of Heating Elements27
Feeding Rollers3
Collecting Rollers3
Process PathFeeding in Through top of Drum
Work TableYes, but no glass
Packing Dimensions3100*1500*1850mm3150*1500*1650mm3250*1600*1750mm3350*1700*1750mm
Installation size5000*2950*870mm5000*3050*870mm5100*3150*870mm5200*3250*870mm
DescriptionThe NEW advanced Rotary Drum Heat Press, the SUBLI-600, was designed to accommodate the increasing demand for faster transfer speeds, which was designed with a pivot system for automatic belt tracking, which ensures no lateral movement and “ghosting” on any of your fabric. The transfer speed up to 13ft/min which enables owners of machines that are struggling to keep up with the increasing speed of newly available industrial printers for the market.

Feature1. Blanket: Dupont
2. 27 heating elements
3. Oil drum: sealed/seamless
4. Transfer Mode: Roll to roll / cut-piece
5. Electronic belt tracking. No air required
6. Maximum transfer speed:4m/min(13.1ft)
7. Heating principle: 100% oil electric with thermal oil
8. Fed-in media: transfer paper, fabric, protective paper
9. Substrate handling system – 3 unwinds and 3 rewinds

Advantages1. It guarantees reduction of production costs, while increasing productivity, as well as multiple working systems.
2. Designed to per platen thermal sublimation print transfers on a continuous basis. Indicated for
large-scale production, its production speed varies from 5 m per minute of up to 600 mm rolls
3. Digital speed controller that allows you to better control your production.
4. This machine allows for continuous printing, i.e., there is no need for manual feeding in of work pieces and paper during operation
5. As a safety device for the machine and the production being made on it, roller heat transfer machine is fitted with a Explosion-proof system, which, in case of any heating working and temperature over-high, prevents the equipment and the work materials from becoming burned.
6. Roll drum adopts chrome technology-Strong hardness,anti-friction,anti seize. Better than teflon coating drum.
7. Heighten Oil tank, sealed oil drum, which ensure 100% uniformity of temperature.
8. 2-in-1 Capability: Roll-to-Roll Transfer and Cut-Sheet Transfer
9. Adjustable Speed Control with Transfer speeds up to 5M/ min

function1. Adopts the instantaneous heating function.
2.Different models for different max glass size can be selecte.
3.Temperature control of thermal oil secondary circulating system
4.Different types can be offered according to different max glass sizes.
5. Adopts the gradient press way according to the direction from inputs to the output section, the press fits effect is very good.

ApplicationIt‘s suitable for sublimation transfer T-shirt, large banners, flags, non-woven fabrics, apparel fabrics, blankets, towels, mouse pads, scarves and other products in the piece, Especially the roll fabrics need to continuous print.
