Product Description

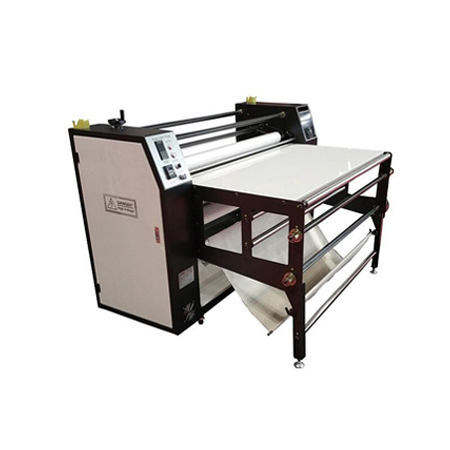

| Item name | Rotary Heat Press Printing Machine | |
| Model No. | SUBLI-320Series | |
| Printing width | 1700mm | 1900M |
| Roll Diameter | 320mm | 320mm |
| Transfer Mode | Roll to roll / Cut – Piece | |
| Transfer Speed | Adjustable , 120-130m/hr(472”/hr-510”/hr) | |
| Power | 40.8KW | 48KW |
| Quantity of Electric Element | 15pcs(1.7KW) | 15pcs(1.7KW) |
| Voltage | 220 volts 3-phase or 380 volts 3-phase. | |
| Packing size in mm | 3500*1400*1650mm | 3500*1400*1650 |
| Gross Weight | 2000KG | 2200KG |
| Application | Transfer onto continuous or cut – piece fabric, sportswear, flags, banner, t shirts, curtain, carpet,textile products | |
| Other Available sizes/drum | 1200mm 2000mm,up to 3.2 meters (custom sizes by special order!) | |
| Description | SUBLI-320Series rotary heat press machine is special design for those large but roll products, such as fabric, textile, curtain, mouse pad, etc sublimation by oil roller drum heating, roller drum and fabrics should be same speed. The diameter of drum is 320mm. Printing width is: 1.7m/1.9m (we can fabric special width of 2.6m or 3.2m as well.) Printing speed can reach 4-5 meter per minute. | |
| Features: | Heated oil drum 320mm High transfer speed: 4-5m/min Idea for dye Sublimation heat transfer production Adjustable speed with digital control Automatic Nomex Drum Blanket Alignment | |
| Product Advantages: | 1) The electric control adopts latest technology that allows separation of the machine body and the blanket automatic, with a power failure protection functions. 2) It is applicable to all over or piece hot press, with a 2-3 times higher work efficiency. 3) Electronic digital terminal temperature control and motor frequency conversion digital speed regulation, with high accuracy (±1-2°C). 4) Drum surface with chrome plating, high hardness and good printing performance, wearable and stickiness-proof. 5) It adopts advanced oil-warming technology and liquid circular heat conduction, with even heating and high thermal conductivity. 6) External oil-filling tank and auto-close valve make it convenient to change heat transfer. 7) A design of pneumatic pressure system make rotary printing machine do perfect transfer. 8) Can let the blanket to be automatic correction, ensure the normal orbit, make the efficiency of heat transfer enhancement and the transfer quality guaranteed. | |
| Application | This machine is suitable mouse pad/pieces, bedding, curtains, large banners, flags, non-woven fabrics, apparel fabrics, towels, blankets, and other products sublimation transfer, especially the piece of fabric of continuous transfer. Capable of continuous printing, high speed, high-volume printing to meet customer demand. | |
| Packing & Shipping | Inner packing: Plastic bags and foam External packing: strong cartons(7 layers) Fully form enclosed packages Customized logo available Easy to carry Suit to ocean shipping and delivery | |
