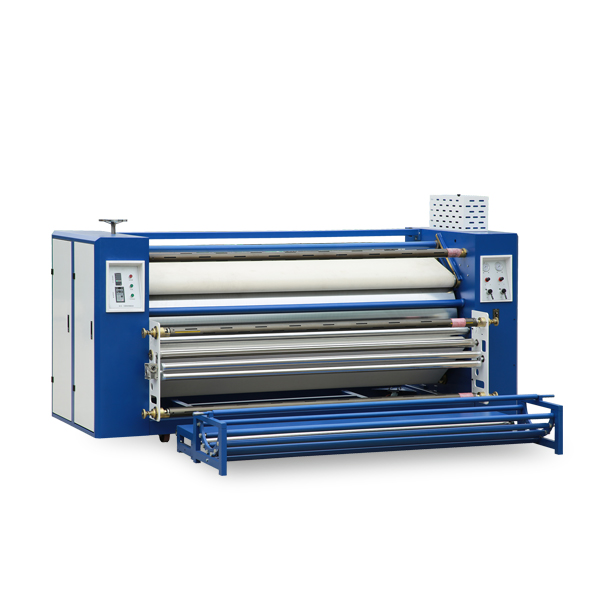

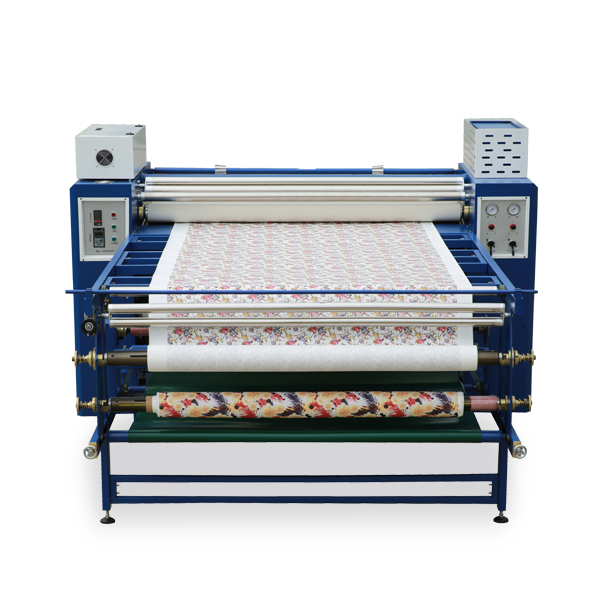

Rotary Heat Press Subli-800 Hi-end

This Rotary Heat Press Machine is mainly used for coil sublimation transfer printing ink, multi-layer composite material laminating, facecloth, or thick material hot drilling.
It adopts a double roller core design, which saves oil and electricity. It has an electronic non-contact heating module, precise automatic thermostatic control, pneumatic booster, automatic rollers, inflatable shaft, automatic edge correction, and many other functions.
sharethis sharing button

Product Description

Drum Diameter80cm or 31.4”,  Double Layer
Working Width2100mm(83″)2500mm(98″)3500mm(138″)
Voltage3 phase, 220V / 380V / 480V3 phase, 380V
Transfer Speed3.3m/min(10ft)-17m/min(52ft)
Number of heating elements36
Feeding Rollers3
Collecting Rollers3
Process PathFeeding in through bottom of Drum
Packing Dimensions3600*2000*1600mm3750*3700*1850mm5000*3700*1800mm
Installation size5000*2200*1800mm5000*3700*1800mm5000*3700*1800mm
Description31.4″ diameter drum provides for high speed transferring,Oil filled drum makes colors consistent side to side and job to job. A new self contained, oil heated drum system assures uniform heat across the width of the cylinder and the lowest possible power consumption.

Features1.Cool down timer
2. 36 heating elements
3.Exit cooling conveyor
4.Blanket coverage at least 80%
5.Safety bar with reverse control
6. Diameter cylinder 80cm (31.4″)
7. Production 17m/min (52 ft/min)max
8.Electro pneumatic belt steering system

△ Diameter cylinder 80cm (31.4″)
△ Production 17m/min (52 ft/min)max
△ 36 heating elements
△83″,98″,138″working width allows heat transfer printing all fabric widths or two side by side. GRAND FORMAT 12 ft. WIDE!
△Blanket coverage at least 80%
△Electro pneumatic belt steering system
△Safety bar with reverse control
△Cool down timer
△Exit cooling conveyor

Advantage1.Good Printing Effects :The main wall panel and all rollers are elaborately made and reinforced.
2.High Equipment Configuration:Pneumatic pressurizing by rollers enables flexible control of the volume of pressure and the use of single or double rollers.
3.Pneumatic Pressurizing: Pneumatic pressure, the pressure size flexible control
4.Placing and taking are integrated into the overall production. Paper and cloth move accurately in parallel without offset. A compact labor-saving device with high overall yields.
